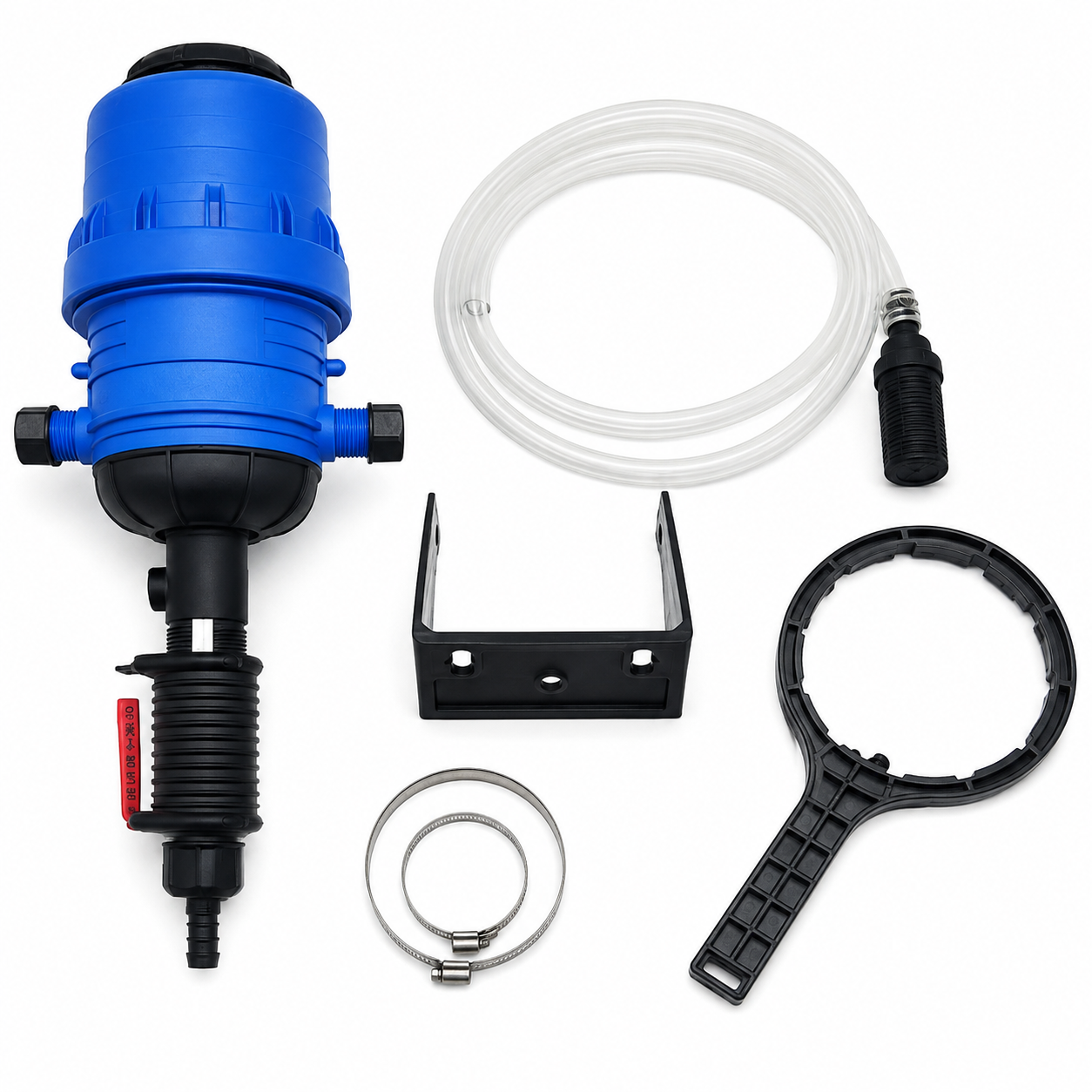

Water-Powered Proportional Fertilizer Injector
Technical Specifications – Proportional Fertilizer Injector
| Item | Specification |
|---|---|
| Type | Water-Powered Proportional Fertilizer Injector |
| Application | Injection of liquid fertilizers and chemical solutions into irrigation systems |
| Proportional Range | 0.4% – 4% |
| Injection Ratio | 1:250 – 1:25 |
| Water Flow Rate | Approx. 20 – 2,500 L/h |
| Operating Pressure | Approx. 0.2 – 8 bar |
| Water Temperature | Approx. 4 – 40°C |
| Operating Principle | Water-powered; requires no electricity |
| Dosage Adjustment | Manual/mechanical adjustment of injection rate |
| Inlet / Outlet Connection | 3/4″ BSPT |
| Maximum Injection Rate | Up to approx. 100 L/h, depending on model |
| Suction Tube | Approx. 10–16 mm, depending on model |
| Construction Material | Engineering plastic resistant to chemicals and fertilizers |
| Installation | Inline or bypass installation |
| Power Source | Water flow and pressure |
| Applications | Drip irrigation, sprinklers, greenhouses, fertigation and hydroponic systems |
Proportional Range: 0.4% – 4%
The injection rate can be adjusted according to the required fertilizer concentration:
- 0.4% = 4 L of concentrate per 1,000 L of irrigation water
- 1% = 10 L per 1,000 L
- 2% = 20 L per 1,000 L
- 4% = 40 L per 1,000 L
