Type of movement
Pulse motion with vibration
Technology 4×4
Initial length
2,50m – 3,00m
Type of head
32 conical carbon fiber sticks
Weight
3,05kg
Rpm of the head
2000 rpm @ 16V DC
Motor
14-16V/ 400W
28-30V/ 400W *concerns 24V motors
Cable length
15m
Output
200 – 250kg olive seed
Average consumption
8A / hour
Power supply
Generator or battery (80A – 100A) with converter
MOVEMENT
With the NEW SYSTEM (Independent movement of the spheres) 4×4 is achieved:
- It move freely in the densest parts of the olive tree
- Minimize damage to fruits and olives
- Relaxed usage after transferring zero vibrations to the user.

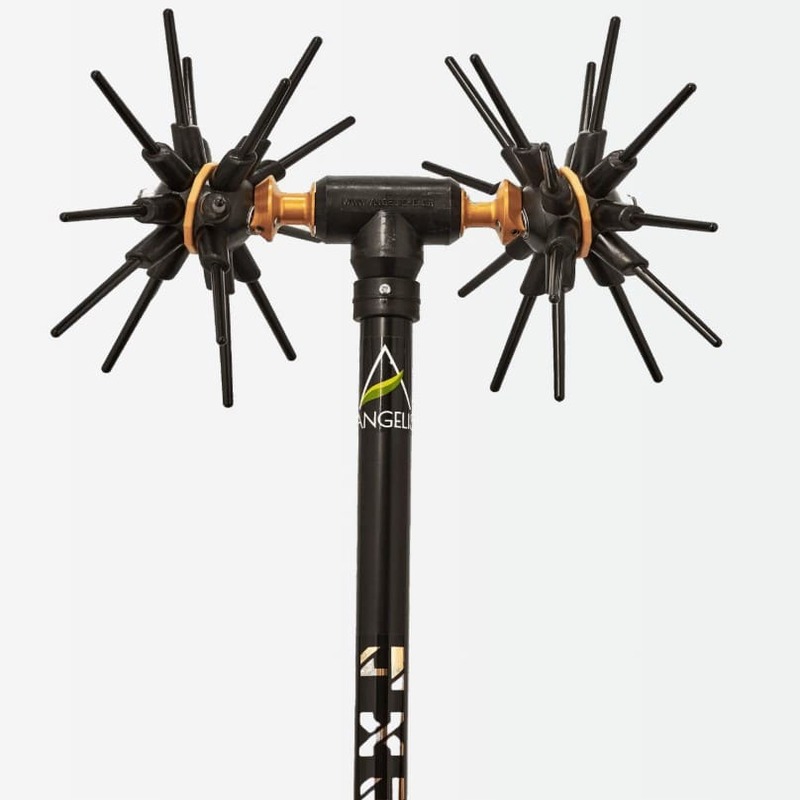

The olive harvester Asteras CF 4×4 is a machine with 2 heads and 32 carbon fiber sticks.
The unique layout of carbon fiber along with the wide range balanced pulse motion, achieves maximum performance without the slightest damage on the tree
HEAD
Asteras CF* is a Greek olive harvester machine with counterweights T8 aluminum
2 cams,
32 conical carbon
Elastomeric material advanced technology
Steel gears
Zero damage
Absolute balance
*Ability to add the 4×4 system to all types of Astera
MOTOR
- BOSCH electric DC 400W performance 2000 rpm @ 16V DC.
- With switch οn-off 35A and a pulse converter.
- It also works with a car battery (with the addition of a converter), with consumption 10-12A /hr.
- Comes with cable 15 meter.
