| item | parameter |

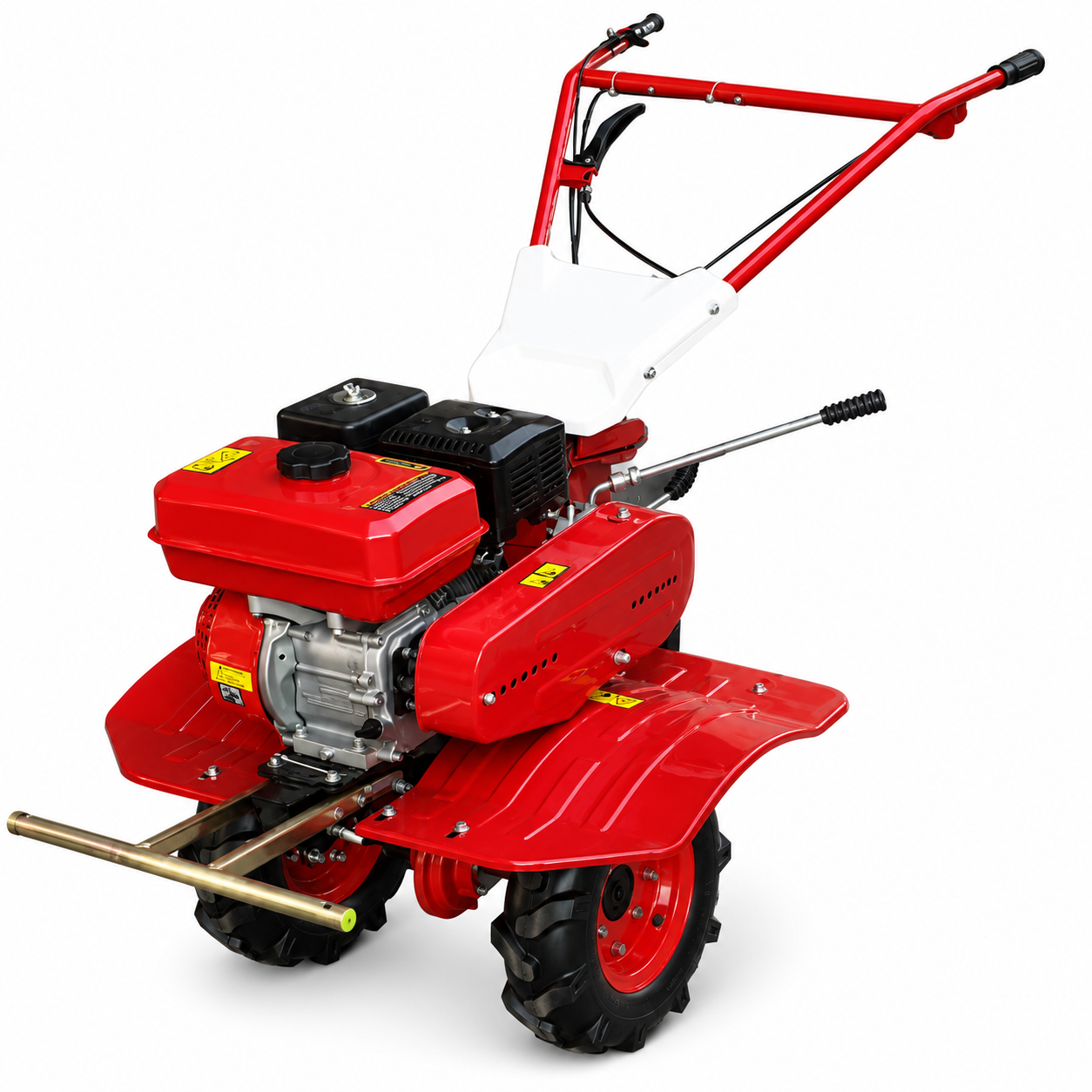

| MODEL | LY1000/3TG-4.1/LY600-800 |
| STRUCTURE | front-mounted |
| ENGINE MODEL | Gasoline engine/173FA AIR COOLED DESEL ENGINE |
| RATED POWER | 4.1KW/4.2KW |
| DIMENSION (L×W×H) | 1600×870×800MM/1600×850×800MM/ |
| WEIGHT | 88KG |
| TRANSMISSION MODE | Gear transmission turbo worm |
| CONNECTION MODE | Direct connection /triangle belt |
| HORIZONTAL | 360 |
| VERTICAL | 45 |
| ROTATE SPEED | 1 gear 84.5R/MIN 11 gear 145.1r/min |
| MAX. TUMING RADIUS | 185 MM |
| NUMBER OF BLADES | 24/32 |
| MODEL OF ROTARY BLADE | 185MM |
| MAIN CLUTCH TYPE | friction disc Tensioner |
| TILLING WIDTH | 960MM |
| TILLING DEPTH | >100MM |
| OPERATING SPEED | >0.3M/S |
| PRODUCTIVITY | 0.1-0.2HM(H.M) |
| FUEL CONSUMPTION | < 10KG/HM |
| WHEEL SIZE | 400-8, 400-10/350-6 |
