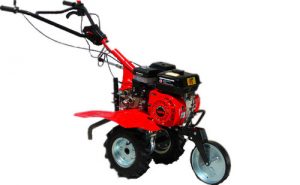

mini-tiller-cultivator-6-1-hp-220-e1524571907443-300x185

Mini tillage series LY900

Rated 0 out of 5

0 customer reviews

SKU: 740 Category: Tiller

item	parameter
MODEL	LY500
STRUCTURE	front-mounted
ENGINE MODEL	Gasoline engine
RATED POWER	4.1KW
DIMENSION (L×W×H)	1450×600×650MM
WEIGHT	70KG/78KG/70KG/74KG
TRANSMISSION MODE	triangle belt
CONNECTION MODE	Direct connection
HORIZONTAL	180/360
VERTICAL	120
ROTATE SPEED	1 gear 101R/MIN 11 gear 133r/min
MAX. TUMING RADIUS	165 MM
NUMBER OF BLADES	24/32
MODEL OF ROTARY BLADE	165MM
MAIN CLUTCH TYPE	Tensioner
TILLING WIDTH	700MM
TILLING DEPTH	>100MM
OPERATING SPEED	>0.3M/S
PRODUCTIVITY	0.1-0.2HM(H.M)
FUEL CONSUMPTION	< 10KG/HM
WHEEL SIZE	400-8, 400-10/350-6
